The combination of modularity and the lighting controls equals a product that can be completely tailored by the user. This product provides the opportunity for an RGB lighting solution that is specific to each and every environment.

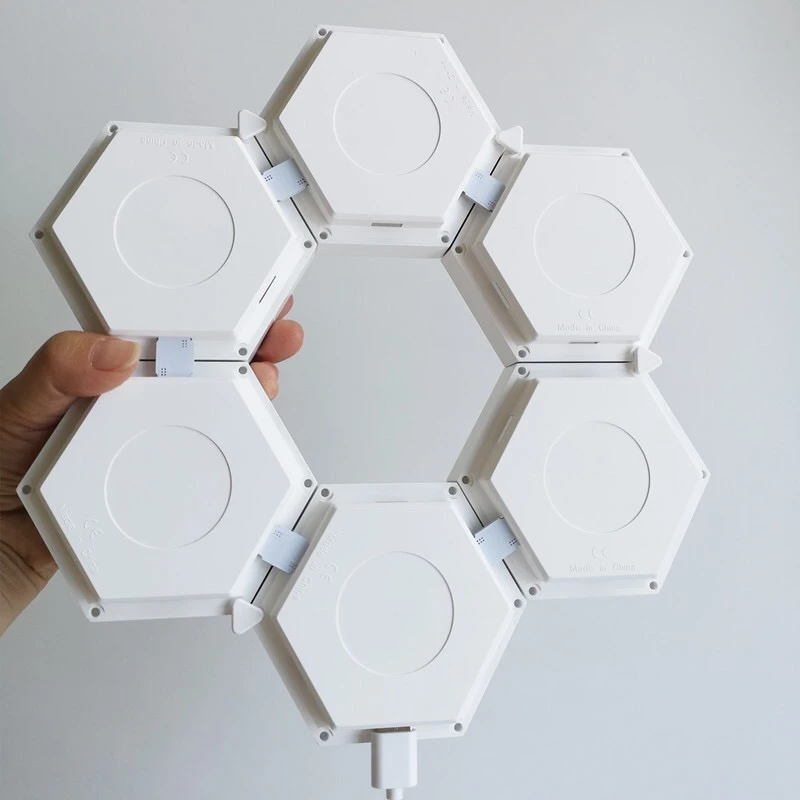

This product consists of multiple plastic hexagons that can be connected together via 4 pins connectors  and interlocking patterns to form a touch screen wall light. The connectors that form the physical connection between components also allow the electricity to pass through from one piece to another.

With the power running through the product, each individual component is turned on and off, change the colour via a capacitive touch sensor incorporated into each piece. The underlying idea for the product is to give the user the ability to turn the interior architecture of a space into the light source. It gives the potential for the user to just swipe the surface of the wall and it will illuminate the path of their touch. Turning the interior architecture into a canvas for illumination with the users hand as the brush.

Swipe On / Swipe Off, Colour change

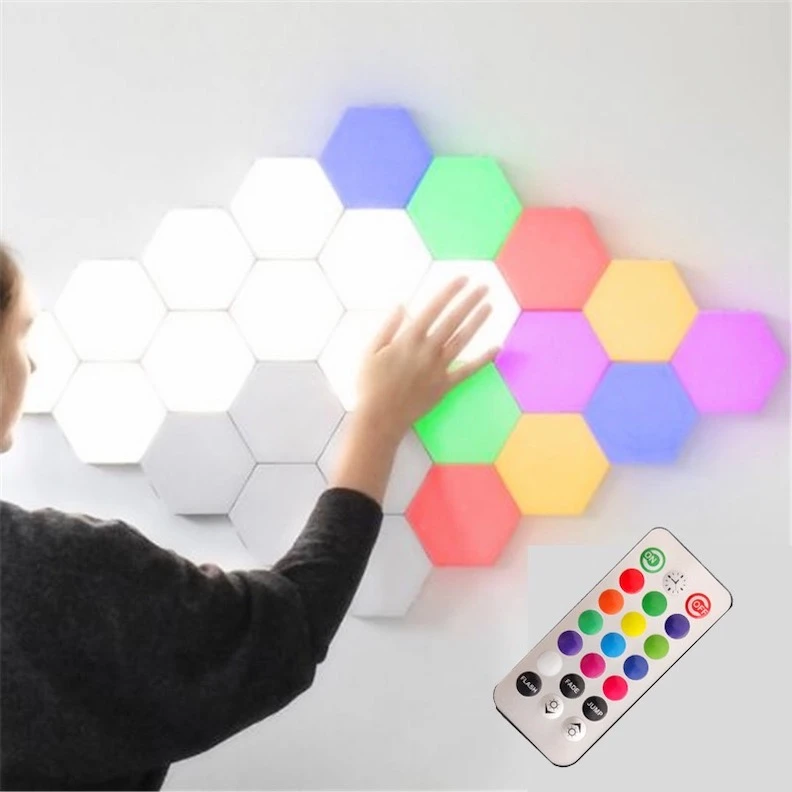

The wall lamp is turned on and off through the physical touch from the user. Using capacitive sensors as the switch, when the user’s body comes into contact with the surface it will toggle each component on or off. This design allows the user to effectively swipe where they want or need light. Turning the interior architecture into a canvas for illumination with the users hand as the brush.

Wall Mounting
Only the central units need to be rigidly connected, allowing the user to move around the other units to make different shapes. We tested various methods and the best solution was a choice of either nail or just sticky pads running around the perimeter of the rear face. The sticky tabs provide an alternative or a back up to the nail connection if mounting onto surfaces where nails cannot be used, for example, glass or tiles.

Power
Hexagon Touch LED  is powered from a mains power supply supplied with the packs with the correct plug will be supplied for your location. The 240v to 24v 2A adapter will power up to 10 panels. For larger displays additional power supplies can be plugged in to increase the capacity to up to 96 panels.

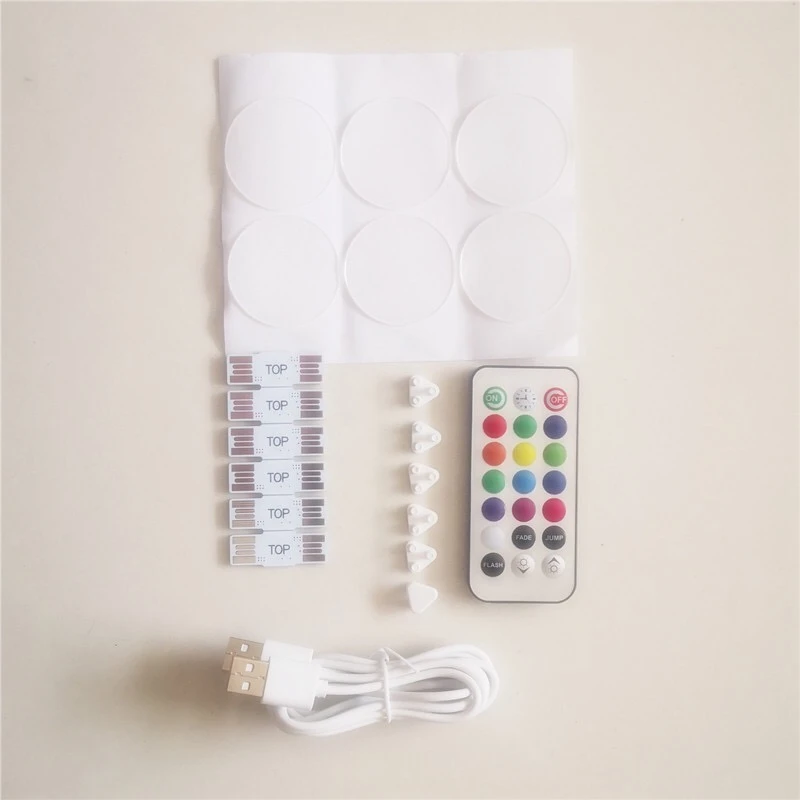

• A 24VDC LED driver is included

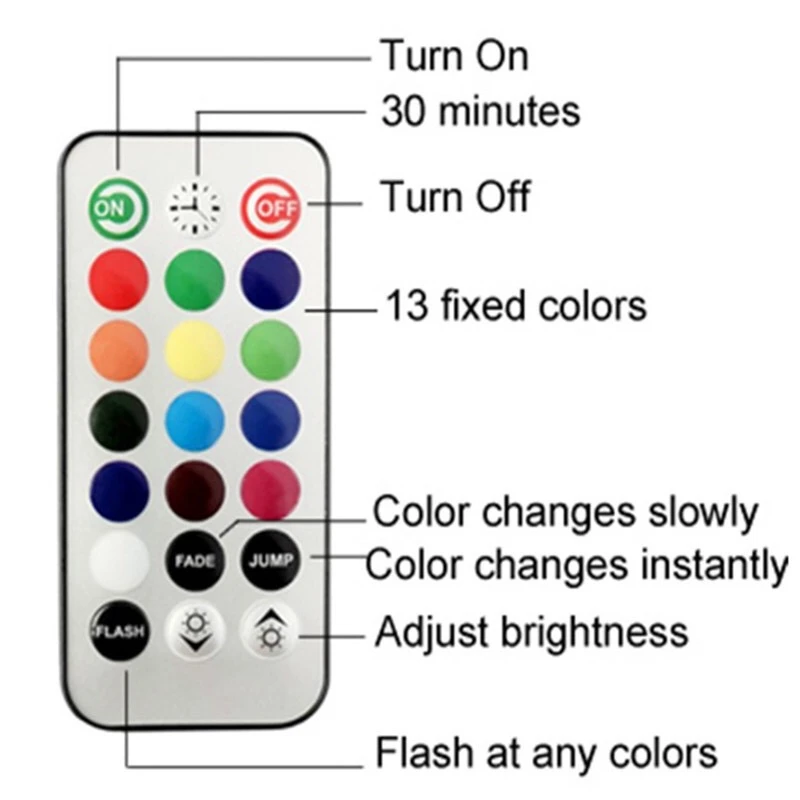

• Remote control
• Touch colour changing
• IP-20 rated, good for indoor installation
• Available in the set of 6 or 10 modules

Brand	LED Expo
MPN (Part No.)	LE-HEX-RGB6
Voltage	24VDC
Dimmable	Yes

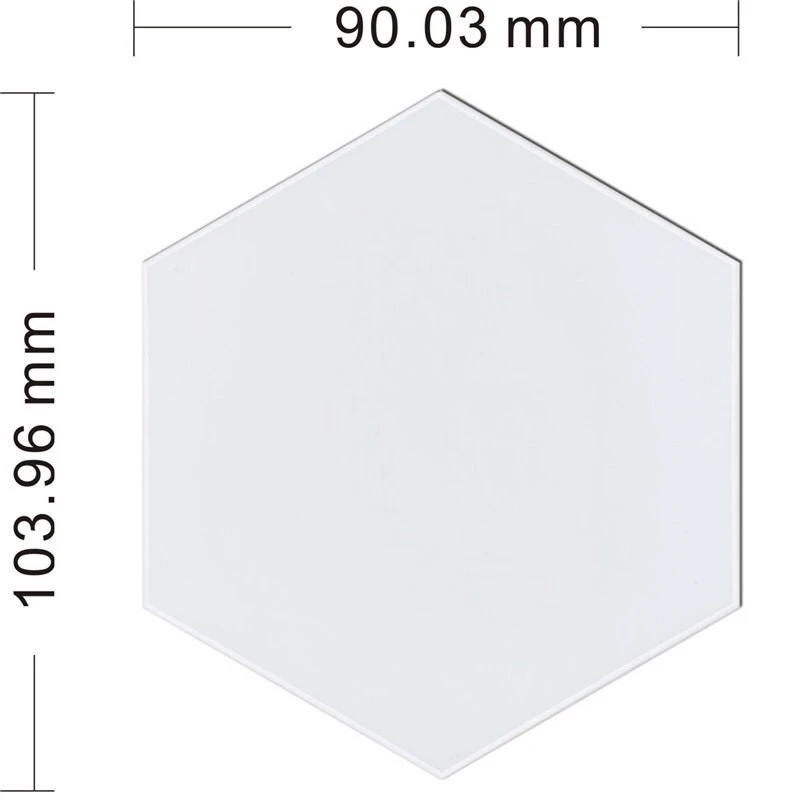

Length	104 mm
Width	20 mm
Height	90 mm
Life Hours	25,000
Power consumption per 1 module	2W
Lumens output per 1 module	200 lm

Warranty 2 years
